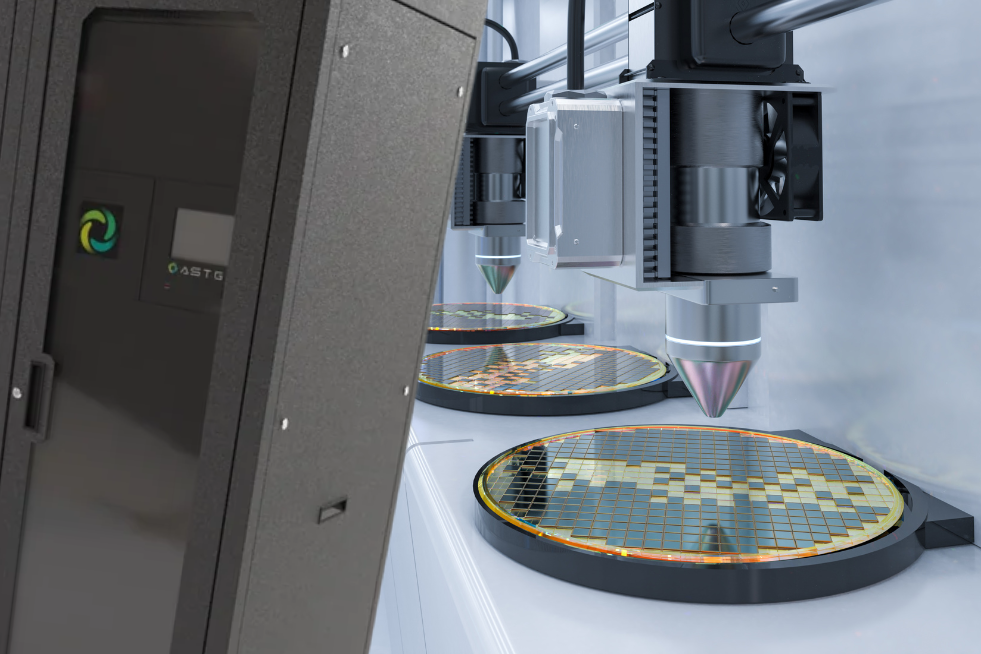

For semiconductor fabs, ultra-high purity (UHP) gas quality has a direct bearing on the stability of sensitive wafer processes. At advanced nodes, tighter process tolerances increase the importance of gas purity, as single-digit parts-per-billion (ppb) impurities can contribute to effects during lithography and deposition. Periodic sampling can confirm gas quality at a particular moment, but it provides limited visibility into what happens between measurements. The ASTG TO-GPMS-6G addresses this limitation through continuous gas analysis, automated controls, and integration into existing fab infrastructure.
Precision detection for essential fab gases
Central to the TO-GPMS-6G is a spectroscopy platform designed to identify trace contamination across several gases used throughout semiconductor manufacturing. Integrated Tiger Optics Cavity Ring-Down Spectrometers (CRDS), including Halo OK and Halo KA units, provide high-precision measurements suited to demanding sub-fab environments.
CRDS measures the decay of laser light within an optical cavity, supporting sensitive gas analysis at concentrations relevant to UHP gas quality control. Continuous measurement also helps operators identify purity excursions that periodic sampling could miss, providing a more detailed picture of changing conditions within critical gas distribution infrastructure.
Within the TO-GPMS-6G, its analyzers cover two important impurity classes across carrier gases and specialty streams:
- Trace oxygen (O2) and water (H2O) in hydrogen (H2), nitrogen (N2), helium (He), and argon (Ar)
- Trace H2O in oxygen (O2) and carbon dioxide (CO2)
Monitoring O2 and H2O helps fabs verify that critical gas streams retain the purity required for sensitive semiconductor processes. By continuously tracking these trace impurities across multiple gases, the TO-GPMS-6G can provide earlier visibility into changes in gas quality than periodic measurements alone.
Scaling gas analysis across a semiconductor facility also calls for sampling architecture built around multiple distribution points. The TO-GPMS-6G offers dual-point monitoring for hydrogen lines and single-point monitoring for major bulk gas lines. Pre-configured expansion taps also provide capacity for future fab expansion or targeted troubleshooting without changing fundamental system architecture.
Engineered for sub-fab safety and hydrogen handling
Hydrogen introduces a distinct engineering challenge because its flammability demands controlled routing and rapid isolation during abnormal conditions. ASTG addresses such a risk through a modular three-bay enclosure designed to separate different gas analysis functions.
Two ventilated bays support H2, N2, Ar, and He analysis. A top-mounted 6-inch exhaust plume connects directly to the customer’s fab exhaust system. A separate, locally vented bay handles O2 and CO2 analysis, establishing chemical isolation that helps reduce cross-contamination risks inside the cabinet.
Safety provisions extend beyond enclosure ventilation. To support safe gas analysis, the gas-handling architecture of the TO-GPMS-6G incorporates several layers of protection for high-risk hydrogen distribution paths:
- Pneumatic diaphragm valves fail closed following loss of power, loss of instrument gas, or an active hydrogen leak event
- Check valves and isolation valves provide additional control over hydrogen flow
- High-quality, leak-tight bypass rotameters support reliable management of the sample flow path
- A dry-contact interface connects with customer-supplied hydrogen detectors
Additional controls enable intervention when abnormal operating conditions occur. Operators have access to a safety bypass and manual sample resets, along with a hardwired Emergency Gas Off (EGO) switch for rapid shutdown response. These safeguards position gas analysis within the wider safety architecture of the semiconductor sub-fab.
Fab system integration, controls, and environmental monitoring
Operational gas analysis becomes more valuable if purity measurements feed directly into the facility’s monitoring infrastructure. An integrated Allen-Bradley programmable logic controller (PLC) compiles purity readings, system status information, and alarm signals from the TO-GPMS-6G. Continuous outbound quality logs pass through a Local Area Network (LAN) connection to the fab’s central facility monitoring system (FMS), ensuring facility teams have a consolidated record of gas conditions and equipment status.
Temperature monitoring adds another source of operational data. Dual internal thermocouples log cabinet temperatures across a 50°F to 100°F range. Should sub-fab ambient conditions move outside specified limits, the PLC can communicate the deviation to facility management personnel for investigation.
The supporting infrastructure of the TO-GPMS-6G reflects the practical demands of semiconductor facility installation. Core electrical, utility, and structural specifications include:
- A UL-listed electrical backplane with an internal 24 VDC supply
- Utility power of 120 VAC at 20 A or 220 VAC at 10 A, operating at 60 Hz

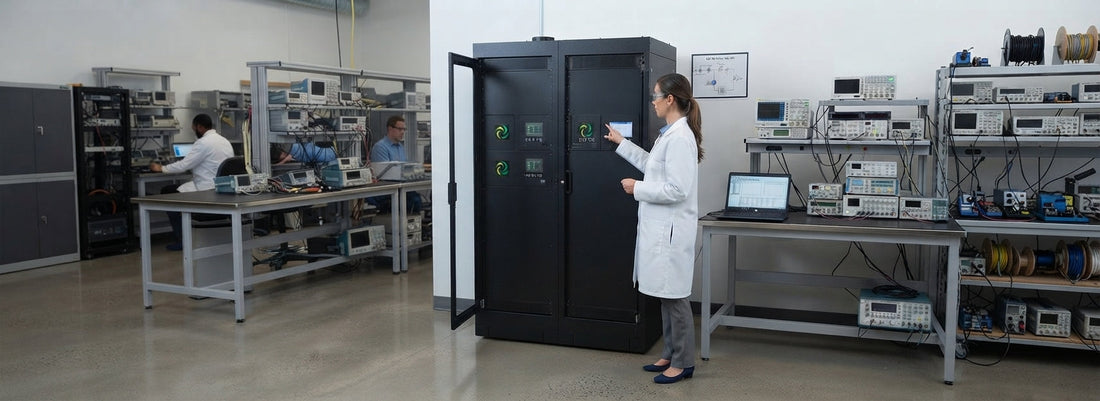

- Overall dimensions of 75 inches high, 74 inches wide, and 31.5 inches deep
- Internal plinth corner anchor points for securing the enclosure directly to the fab floor
Physically, the footprint of the TO-GPMS-6G provides space for analytical instrumentation, separated gas-handling bays, control hardware, ventilation provisions, and redundant safety components. The result is a gas analysis system configured around both analytical performance and the practical operating conditions located inside semiconductor sub-fabs.
Supporting gas purity across semiconductor processes
Reliable UHP gas monitoring plays a crucial role in protecting sensitive semiconductor processes from trace contamination. The TO-GPMS-6G is engineered to integrate continuous gas analysis into the wider operational infrastructure of the fab. Connect with ASTG now to find out further detail about the TO-GPMS-6G and how it can provide ongoing oversight of critical UHP gas supplies.
