Semiconductor processes rely on ultra-high purity (UHP) gases to maintain tightly controlled conditions during deposition, etching, annealing, plasma processing, and other vital wafer operations. Sustaining that purity becomes more challenging once gas exits bulk storage and moves through the fab distribution network, where outgassing, valve wear, micro-leaks, or purifier exhaustion can introduce contaminants at parts-per-billion (ppb) concentrations. A periodic sample may confirm gas quality at one moment, however it cannot reveal what happens between tests. Continuous gas purity monitoring delivers ongoing insight into oxygen (O2), moisture (H2O), and other critical impurities, allowing facilities and process teams to detect changes as they develop and investigate them prior to production being affected.
Mapping target gases and impurity limits in semiconductor fabs
Effective gas monitoring strategies identify which contaminants threaten specific fabrication processes and establish meaningful thresholds for action. Trace O2 and H2O warrant close attention because they can promote unwanted oxidation, contribute to corrosion within gas distribution infrastructure, and interfere with controlled chamber conditions during deposition, etching, and annealing.
Monitoring requirements vary depending on the bulk gas and the impurities that could affect its intended use. Semiconductor fabs commonly monitor gas purity across:
- Hydrogen (H2)- Applied to semiconductor processes such as annealing an epitaxial growth, where oxygen and moisture contamination can interfere with tightly controlled process conditions
- Nitrogen (N2)- widely used for purging, blanketing, and maintaining inert environments
- Argon (Ar) and helium (He)- used in processes such as plasma processing, sputtering, and leak detection
- Carbon dioxide (CO2)- utilised in wafer cleaning applications to help remove particulate and organic contaminants, with moisture levels monitored according to process-specific quality requirements
- Process oxygen (O2)- which needs controlled moisture levels for oxidation and other oxygen-dependent processes
Engineers should distinguish normal baseline concentrations from hard specification or compliance limits. A gradual rise in moisture or oxygen may remain within specification yet signal deteriorating purification or distribution performance. Continuous trend data exposes such movement before wafer metrology reports defects, giving process and facilities teams time to investigate.
Selecting the core analytical engine
Reliable gas purity monitoring relies on analytical technology capable of measuring extremely low impurity concentrations without imposing excessive maintenance demands. Electrochemical sensors serve many industrial measurement duties, but semiconductor UHP gas analysis places stringent requirements on sensitivity, response, and baseline stability. Frequent calibration or sensor replacement can also interrupt gas monitoring coverage.
As an optical technique, Cavity Ring-Down Spectroscopy (CRDS) addresses these issues by measuring molecular absorption inside a high-finesse optical cavity. For semiconductor gas purity analysis, its operational characteristics include:
- Sub-ppb detection capability for critical trace impurities
- Rapid response to changes in sample composition
- High baseline stability during continuous operation
- Reduced dependence on frequent recalibration compared with conventional sensor technologies
Facility layout also influences analyzer architecture. Dedicated single-gas instruments can serve isolated measurement points, whereas centralized multi-gas systems consolidate several monitoring duties within one engineered platform. Selection should consider gas matrices, sampling locations, available footprint, service access, redundancy objectives, and the number of quality signals sent to facility controls.
Designing enclosures, sample delivery, and safety loops
Analytical performance is closely tied to sample integrity. Even a highly sensitive trace gas analyzer can only provide reliable data if the sample reaching it accurately represents the gas within the fab distribution system. A poorly designed sample delivery system can introduce contamination through leaks, outgassing, unsuitable wetted materials, or stagnant volumes, potentially compromising the value of the measurement prior to the gas entering the analyzer.
Sample handling thus needs the same careful consideration as analyzer performance because the design of the sample path directly affects the quality of a measurement. Pressure regulation, isolation, and flow control must maintain a stable, representative sample while minimizing opportunities for oxygen, moisture, or other contaminants to reach the sample path.
For systems operating across inlet pressures of approximately 10-125 psi, engineered sample conditioning can also preserve consistent conditions at the analyzer as facility supply pressures change. Careful design of the complete sample path helps ensure variations detected at ppb concentrations provide an accurate indication of gas purity throughout the distribution system.
Hydrogen introduces a separate safety concern since the gas monitoring system must handle a flammable sample without allowing hazardous accumulation around electrical equipment. Segregated electronic enclosures and dedicated ventilation provide controlled isolation, with purpose-designed installations using features such as 6-inch exhaust runs for designated analysis bays.
Fail-safe engineering can offer several protective measures to reduce hydrogen-related risks:
- 24 volts direct current (VDC) safety loops for low-voltage control logic
- Gas-operated diaphragm valves that isolate hydrogen following power or gas loss
- Redundant check valves that protect against unintended reverse flow
- Dedicated ventilation that removes potential gas accumulation from enclosed spaces
Such safeguards connect continuous gas purity monitoring with the fab's wider hazardous-gas management strategy while protecting personnel, analytical equipment, and surrounding infrastructure.
Integrating gas purity data with facility automation and FMS
Continuous analysis delivers greater operational value when measurements feed directly into facility automation. An industrial programmable logic controller (PLC), such as an Allen-Bradley platform, can collect analyzer readings, instrument diagnostics, alarms, and enclosure status within a common control architecture.
Secure Ethernet/LAN communication can transmit gas purity measurements and system health information to the fab's Facility Monitoring System (FMS). Facilities teams can then examine current conditions alongside historical trends without treating analytical instruments as isolated devices. Subtle impurity movement therefore becomes part of routine operational surveillance and escalation workflows.
Environmental monitoring adds useful diagnostic context. Integrated thermocouples can track enclosure temperatures across ambient fab conditions from 50-100°F. Combining temperature measurements with cabinet status, analyzer diagnostics, and impurity concentrations ensures engineers have a broader view of system performance and helps identify environmental changes that could influence analytical stability.
Connecting gas purity monitoring to fab operations

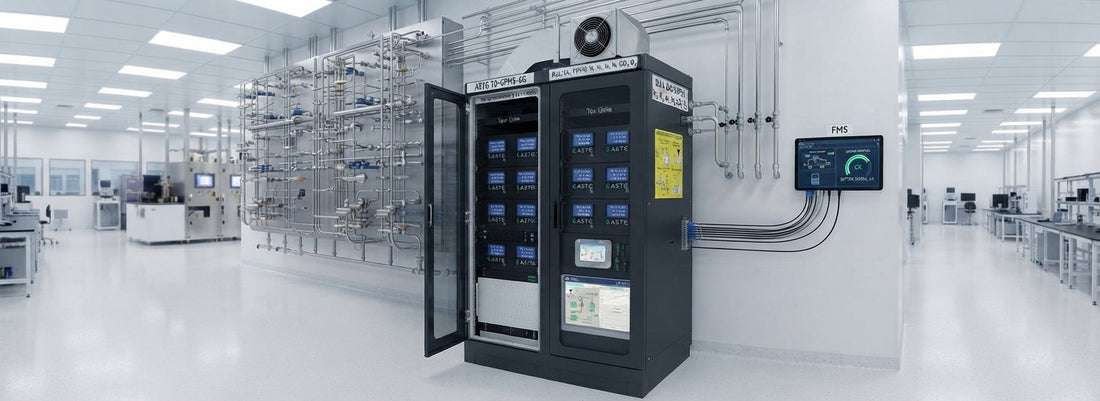

Continuous gas purity monitoring establishes a means for semiconductor fabs to identify changes in gas quality before trace contamination reaches sensitive process equipment. ASTG's fixed gas purity monitoring system (GPMS) provides continuous gas purity monitoring across configurations ranging from 1G to multi-gas 6G systems. Our TO-GPMS-6G brings Tiger Optics Cavity Ring-Down Spectrometers into an engineered system with sample handling, an Allen Bradley PLC, FMS communication, dedicated ventilation, hydrogen isolation, check valves, thermocouples, and 24 VDC safety logic. The final result is a centralized platform made to turn trace impurity measurements into actionable facility data. Speak with ASTG now about how our GPMS products could work with your gas distribution network and monitoring objectives.
